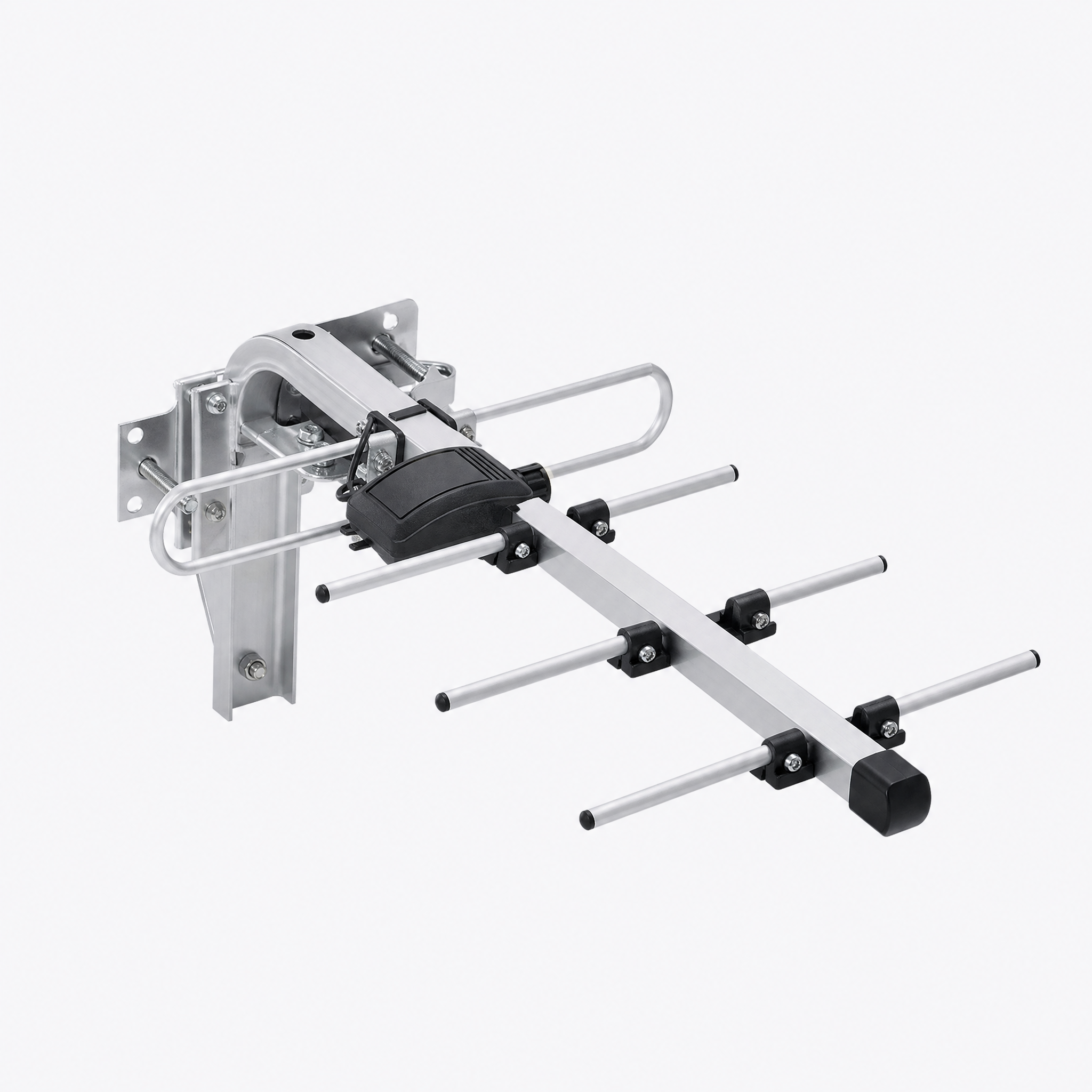

Outdoor TV Antennas / VE-TV-O080
Antenna Outdoor 80
Directional outdoor UHF/VHF antenna platform for residential and channel installation programs.
Model
VE-TV-O080
Series
Antenna Outdoor
Key Specification
VHF 174-230 / UHF 470-698 MHz
Primary Performance
8.5dBi typical UHF gain
Power / Input
Passive coaxial feed
Interfaces
75-ohm weatherproof balun
Technology / Standards
DVB-T/T2, ATSC, ISDB-T compatible
Housing Material
Powder-coated aluminum + stainless hardware
Dimensions
720 x 400 x 520 mm installed
Net Weight
1.2 kg
Cable Length
1.5 m coaxial pigtail
Reference MOQ
500 pcs
Sample Lead Time
12-16 days
Production Lead Time
40-50 days after approval
Customization
Element count, logo, bracket, packaging
Compliance Support
CE, FCC, RoHS project documentation support
Target Markets
North America, Europe, Australia
Built for channel programs and product integration.
The product platform combines a practical hardware architecture with enclosure, color, packaging, and labeling options for distributor and private-label programs.
Validation and quality control
Engineering validation covers functional behavior, material durability, safety checks, aging performance, and shipment inspection according to the confirmed project specification.
Customization scope
Available project work includes color matching, logo application, packaging structure, accessory selection, firmware behavior where applicable, and market-specific documentation support.
